Are you struggling to find high-quality, precise molds for the new BYD Leopard 8? The market is flooded with poor fits, but precision is key for this luxury SUV.
The BYD Leopard 8 TPE floor mats[^1] offer superior durability and an exact fit for both 6 and 7-seat configurations. Using advanced 3D scanning and injection molding, these mats provide a non-toxic, odorless, and waterproof solution that protects the vehicle's original carpet while offering custom branding opportunities.
I have seen many designers struggle with the transition from a digital CAD file to a physical product that feels premium. It is not just about the shape; it is about the material and the molding process. In the following sections, I will break down exactly how we achieve this high standard for the BYD Leopard 8 mats.
Generate Claims
TPE mats are generally heavier than rubber mats.False
TPE is typically lighter than traditional rubber, making it easier to remove for cleaning.
3D scanning is required for a perfect custom fit.True
Manual measurements cannot capture the complex curves of a vehicle floor like the BYD Leopard 8.
How Does Custom Fitting Ensure Precision for Leopard 8?
Generic mats never fit right, leaving gaps where dirt accumulates. You want a product that looks like it came from the factory, not a cheap aftermarket addition.
We use industrial-grade 3D scanning[^2] to map the entire floor of the BYD Leopard 8. This data creates a precise mold, ensuring the TPE mat fits every curve, corner, and pedal clearance of the 6 or 7-seat layout without sliding or interfering with driving.
As a mold designer, you know that shrinkage calculation is the hardest part of the job. When we design molds for the BYD Leopard 8, we do not just guess. We start with a full 3D scan of the vehicle interior. This gives us a point cloud data set that is accurate to within 0.1mm.
However, having the data is only step one. We must convert this into a manufacturable mold design[^3]. For TPE material, we usually calculate a shrinkage rate between 1.0% and 1.5%, depending on the specific density. If we get this wrong, the large floor mat will warp or be too short.
Key Design Considerations
- Pedal Clearance: The mold must have a safety zone around the accelerator.
- Side Walls: High edges (3D design) trap water, but they require deep mold cavities.
- Draft Angles: We need sufficient draft angles to eject the large mat from the mold without drag marks.
| Feature | Generic Mat | Custom Molded TPE |
|---|---|---|
| Fitment | Loose, flat | 3D contour, tight fit |
| Safety | Can slide under pedals | Locked in place |
| Aesthetics | Looks cheap | Looks OEM/Factory |
By controlling these variables in the mold design phase, we ensure the final product fits the Leopard 8 perfectly.
Generate Claims
Mold shrinkage for TPE is always exactly 0.5%.False
Shrinkage varies based on the specific TPE compound and part geometry, usually ranging from 1.0% nei 2.0%.
High side walls on mats require deeper mold cavities.True
To create a 3D tray effect, the mold core and cavity must be machined to a greater depth.
Why Is TPE Material Essential for Long-Lasting Durability?
Rubber mats often crack and smell bad after a hot summer. You need a material that withstands extreme temperatures and daily abuse without degrading over time.

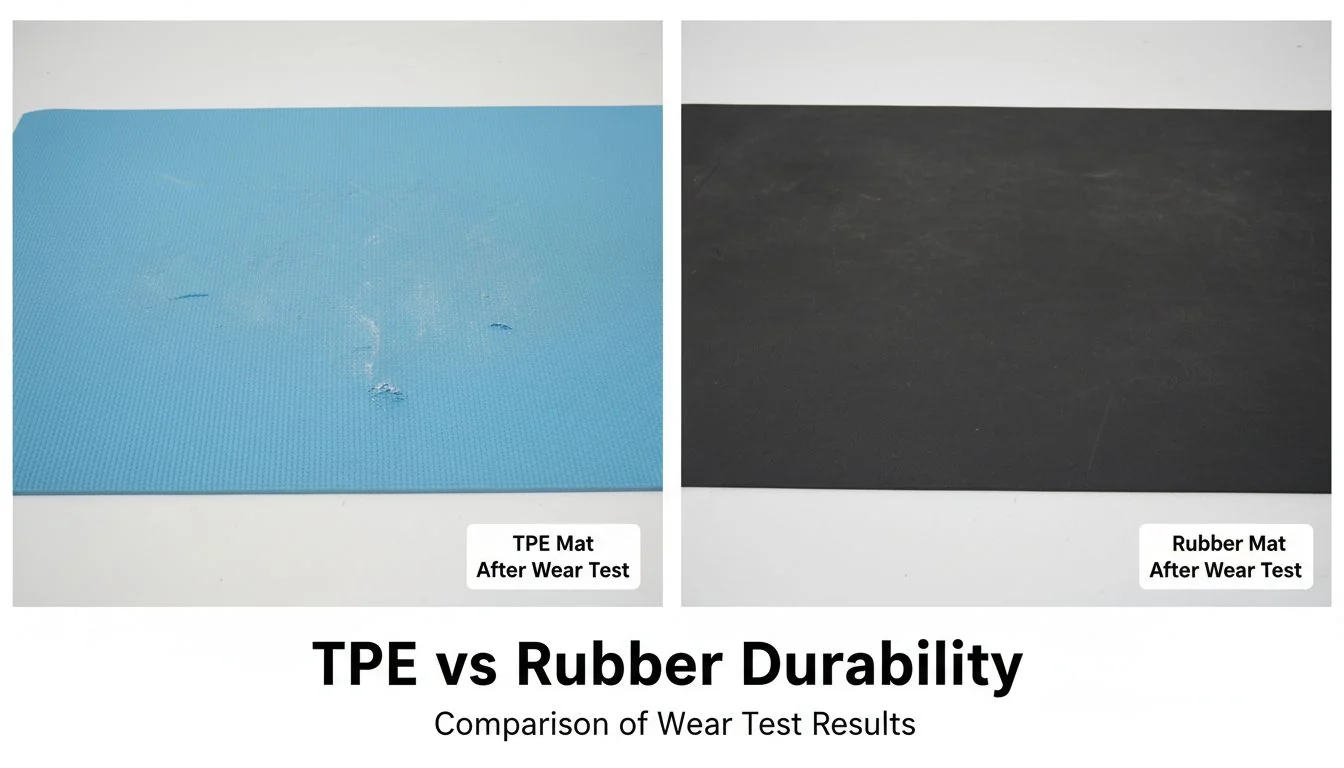

Thermoplastic Elastomer (TPE) combines plastic processing efficiency with rubber properties. It resists extreme heat, abrasion, and chemicals, making it the ideal choice for heavy-duty automotive floor mats that need to last for the vehicle's lifetime.
In my years in the mold industry, I have seen materials evolve. TPE (Thermoplastic Elastomer) is currently the gold standard for car mats. Unlike PVC, which releases toxic fumes when hot, or traditional rubber, which is heavy and smells, TPE is safe and stable.
From a manufacturing perspective, TPE is excellent because it can be injection molded. This allows for high production cycles compared to compression molding used for rubber.
Material Properties for Mold Designers
- temperature resistance[^4]: TPE stays flexible at -40°C and does not melt at 75°C.
- Abrasion Resistance: The surface texture, defined by the mold etching, helps hide scratches.
- Recyclability: TPE scraps from the molding process can be reground and reused, reducing waste.
When we select the steel for the mold, we usually use P20 or 718 steel. TPE is not corrosive, so we do not need expensive stainless steel molds, but the polish must be good to ensure the texture transfers correctly.
| Property | TPE | PVC | Rubber |
|---|---|---|---|
| Odor | None | Strong | Strong |
| Weight | Light | Medium | Heavy |
| Eco-Friendly | Yes | No | No |
Generate Claims
TPE material releases toxic fumes at high temperatures.False
High-quality TPE is odorless and non-toxic, even in hot car interiors.
Injection molding is faster than compression molding for mats.True
Injection molding allows for rapid cycle times and automation, unlike the slower compression process.
Can Mold Design Prevent Floor Mats from Slipping?
A sliding mat under the brake pedal is a major safety hazard. Safety is non-negotiable, and the solution lies in the physical design of the mat's bottom.
Effective non-slip features rely on bottom spikes and precise buckle positions integrated into the mold design. This mechanical locking system keeps the mat strictly in place during driving, ensuring it never interferes with vehicle operation.
Safety is the number one priority in automotive design. As a designer, Jacky, you know that friction alone is not enough. We must engineer mechanical locks.
The "Spike" Challenge in Mold Making

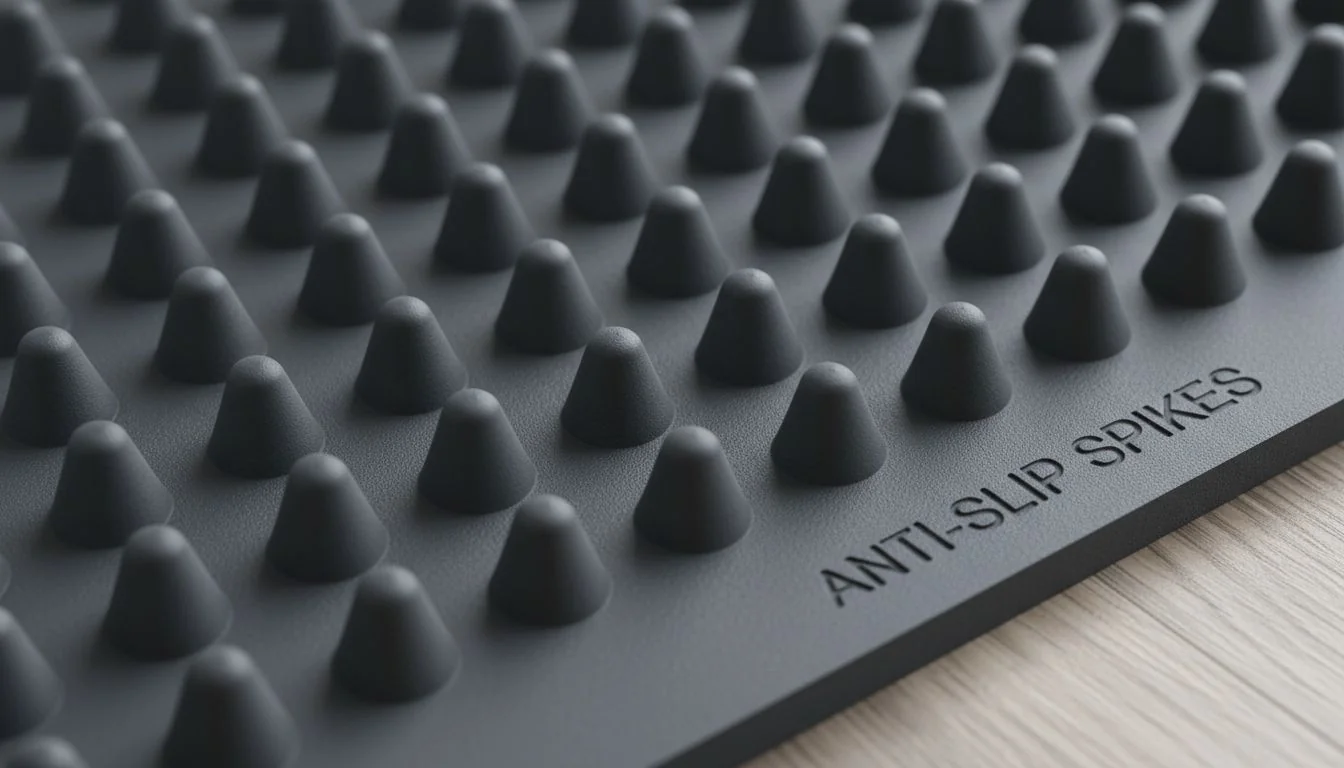

Creating the anti-slip "nibs" or spikes on the back of the mat is tricky for the mold maker.
- Ejection Issues: If the spikes are too long or have undercuts, the mat will stick in the mold.
- Venting: Air gets trapped in these tiny spike cavities. We must add proper venting to prevent burning the material.
OEM Retention Clips
The BYD Leopard 8 has specific anchor points on the floor. Our mold includes inserts that create the exact hole or snap-fit for these anchors. This is not a generic hole; it is a molded feature that clicks into place.

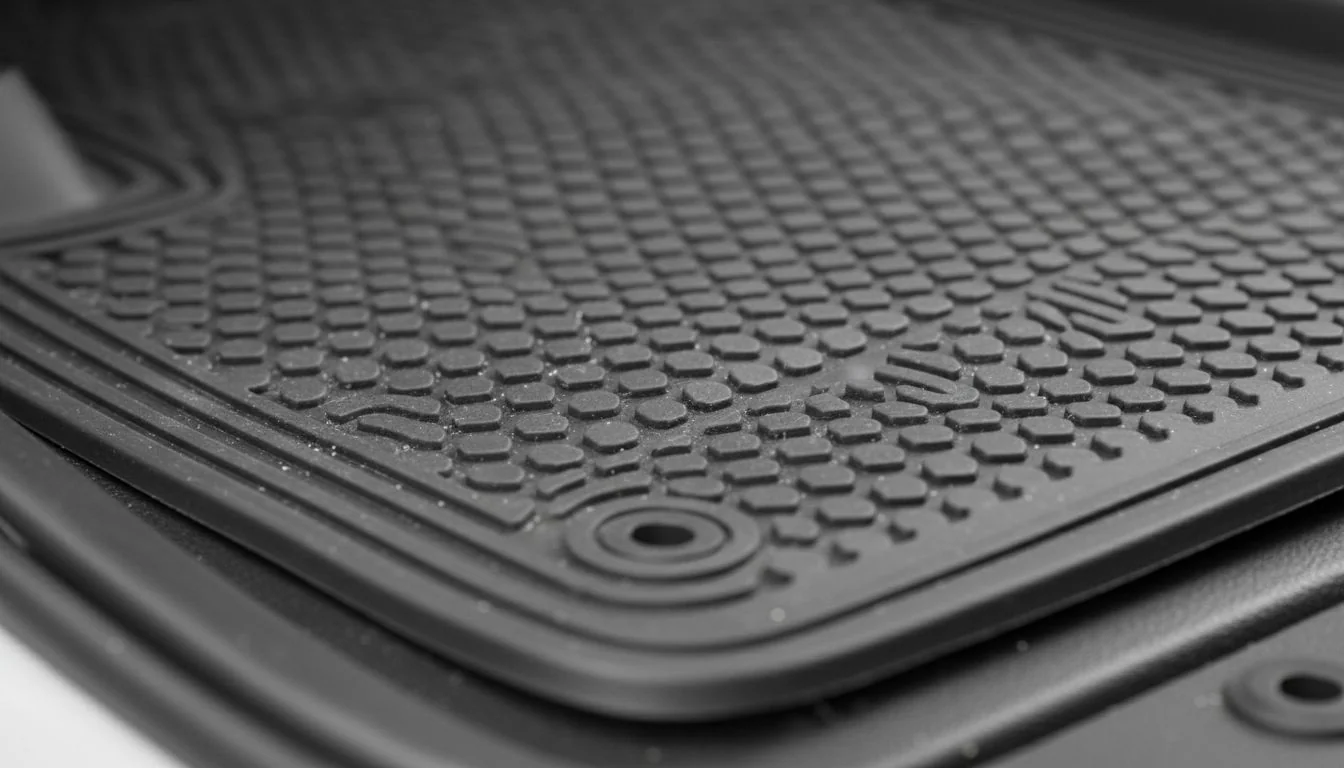

We also use a specific texture on the top surface. This is achieved through chemical etching on the mold cavity. This texture provides grip for the driver's shoes, even when wet.
Generate Claims
Smooth bottom mats are safer for driving.False
Smooth mats slide easily, which can block pedals and cause accidents.
Mold venting is necessary for detailed features like spikes.True
Without venting, trapped air prevents the plastic from filling the tiny spike cavities completely.
How Do We Handle Compatibility for 6 and 7 Seat Versions?
Different seat layouts mean different floor plans. One size does not fit all, and using the wrong mat looks unprofessional and leaves carpet exposed.
The BYD Leopard 8 has distinct floor geometries for 6 and 7-seat models. We utilize interchangeable mold inserts or separate tooling to guarantee exact coverage for the second and third rows, ensuring every inch is protected.

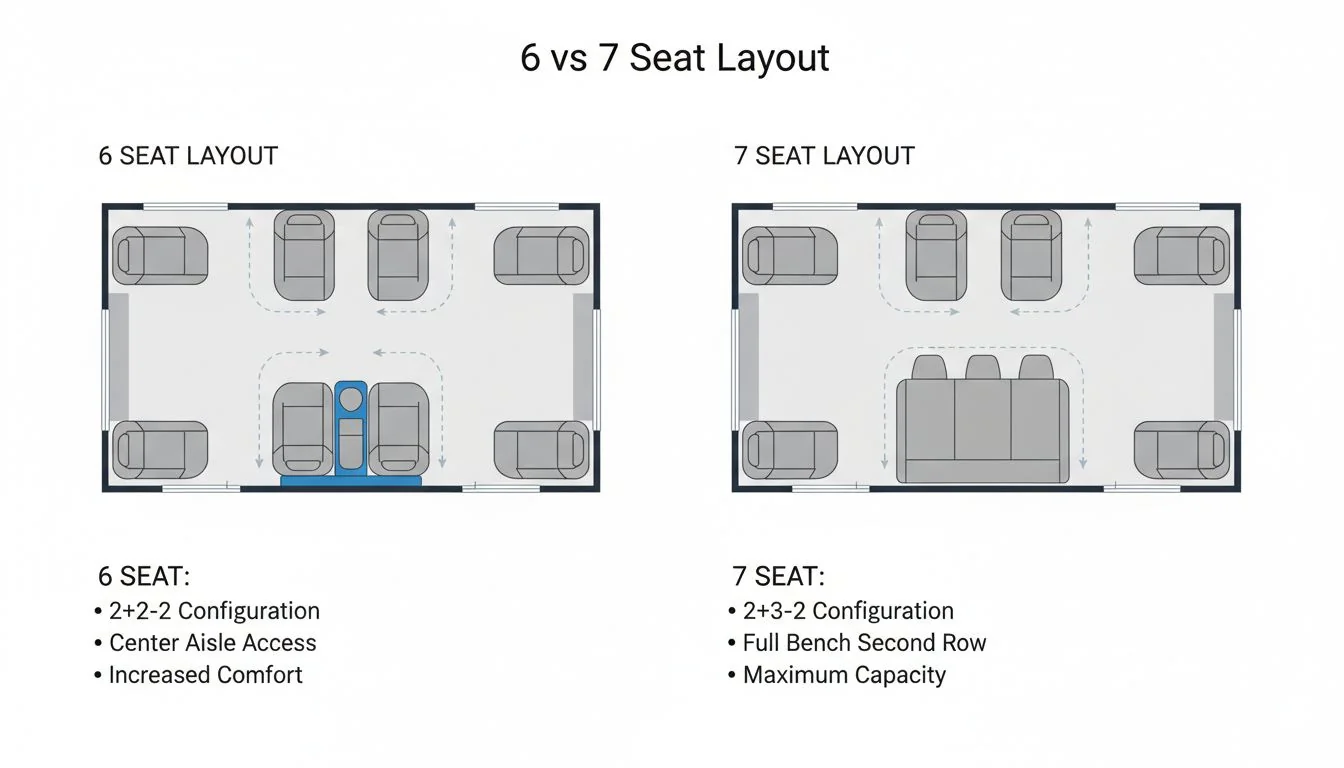

The BYD Leopard 8 comes in two main configurations. The 6-seat version usually has a walk-through aisle in the second row, while the 7-seat version has a full bench.
Modular Mold Strategy
To save costs on tooling, we often use a modular mold design[^5].
- Main Body: The front row mats are usually the same.
- Rear Variations: For the rear mats, we might use a "shut-off" insert in the mold. This allows us to change the shape of the mat without building a completely new mold base.
However, if the geometry is too different, we invest in separate molds. For the Leopard 8, the third-row access is different. The 6-seat mat needs to cover the center aisle. The 7-seat mat needs to accommodate the sliding rail mechanism of the bench seat.
We verify these designs by fitting prototypes into actual vehicles. We check the rail clearance carefully. If the mat blocks the seat rail, the seat cannot move, and the product fails.
Generate Claims
6-seat and 7-seat cars always use the same floor mats.False
The second and third-row floor layouts differ significantly, requiring specific mat shapes.
Modular molds can reduce tooling costs.True
Using inserts allows one mold base to produce variations of a part, saving steel and machining time.
What Defines Strict Quality Control in TPE Mat Production?
Defects in mass production cost money and damage your reputation. You cannot afford to send a warped or flashing product to a customer.
quality control[^6] involves checking flash, sink marks, and dimensional accuracy. We test TPE mats for odor, tensile strength, and fitment on actual vehicle bucks before shipping to ensure every unit meets OEM standards.
At Moldle, we believe that quality is made in the mold, not inspected in. However, verification is still vital. When producing large TPE parts like these, several common defects can occur.
Common Defects and Solutions
- Flash: Excess material on the edges. This happens if the mold clamping force is too low or the parting line is worn. We maintain our CNC machines to ensure tight tolerances.
- Warpage: Large flat parts like mats love to warp as they cool. We use cooling fixtures. After the mat comes out of the mold, we clamp it to a fixture while it cools down to room temperature. This locks in the shape.
- Sink Marks: Thick areas might sink. We adjust the packing pressure during injection to prevent this.
The QC Checklist
- Visual: No flow marks or color streaks.
- Dimensional: Must fit the checking fixture (Go/No-Go gauge).
- Smell Test: Must be odorless immediately after unpacking.
| Defect | Cause | Solution |
|---|---|---|
| Flash | Worn Mold | Repair parting line |
| Warpage | Uneven Cooling | Use cooling fixture |
| Short Shot | Low Pressure | Increase injection pressure |
Generate Claims
Cooling fixtures help prevent warpage in large parts.True
Holding the hot part in the correct shape while it cools ensures it retains that shape permanently.
Flash is a sign of a high-quality mold.False
Flash indicates a gap in the mold parting line, usually due to wear or poor machining.
How Can Custom Packaging Elevate Your Brand Value?
Great products in bad boxes look cheap. First impressions matter immensely, and packaging is the first thing your customer sees when the delivery arrives.
We offer custom branding options, including logo inserts on the mat and branded carton packaging. This turns a generic auto part into a premium retail product, enhancing the unboxing experience for your customers.
If you want to build a brand, you cannot just sell a "mat." You are selling an experience. We support this through two main avenues: Product Branding and Package Branding.
Product Branding (In-Mold)
We design the mold with a replaceable insert for the logo area.
- Standard: We can leave it blank or put a model name like "Leopard 8".
- Custom: We can machine an insert with your brand logo. This means the mat comes out of the machine with your logo permanently molded into the TPE. It will never peel off.

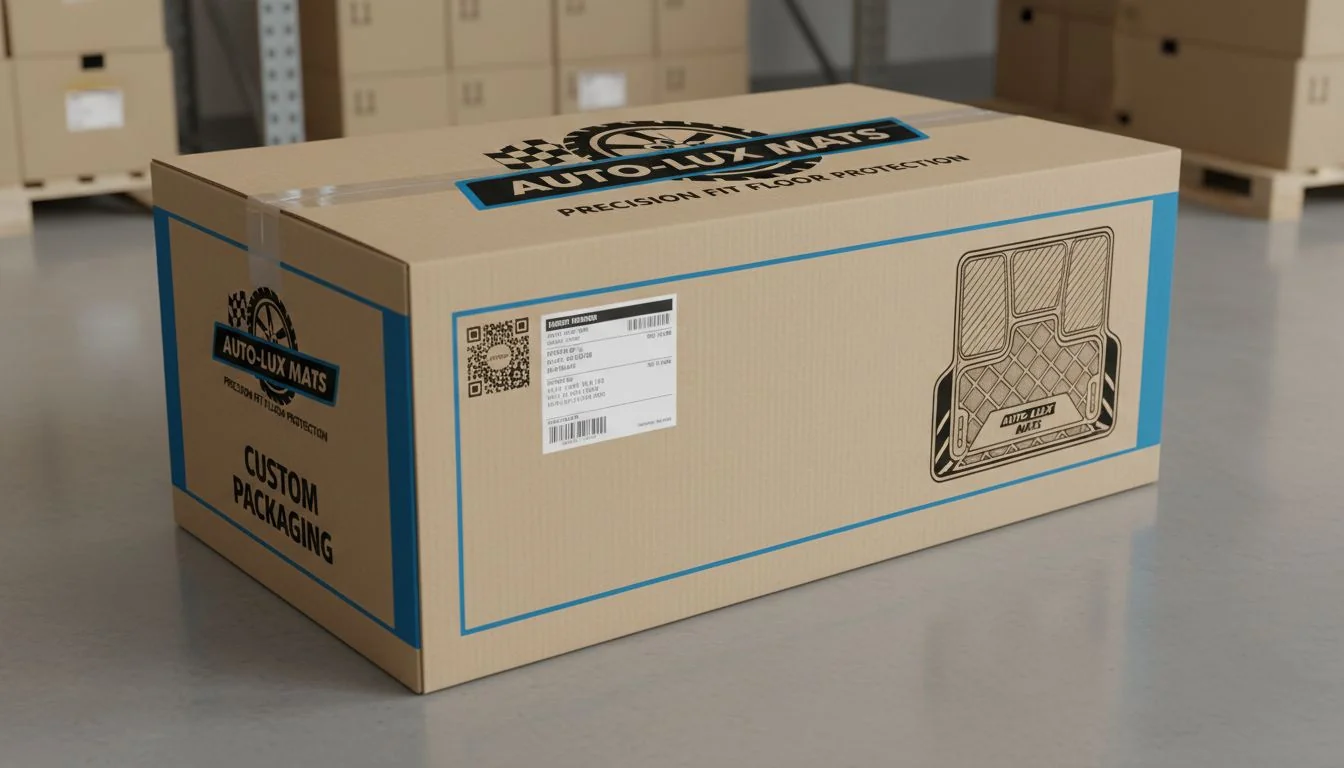

Package Branding
Shipping large mats is hard. They can get crushed. We design cartons that are strong enough for international logistics.
- Retail Ready: We can print your design, barcode, and instructions directly on the box.
- Protection: We use internal supports to keep the mats from folding incorrectly, which could cause permanent creases.
Generate Claims
In-mold logos can peel off over time.False
In-mold logos are part of the material itself and are permanent.
Proper packaging prevents permanent creases during shipping.True
TPE can take a 'set' if folded tightly for too long; proper support prevents this.
Where Is the Best Place to Sell These Custom TPE Mats?
Having stock is useless if you cannot sell it. You need a strategy to reach the BYD owners who are looking for upgrades right now.
These mats perform well in both online marketplaces and offline auto shops. The high demand for BYD accessories makes this a lucrative niche for distributors and brand owners looking to expand their automotive product lines.
I have helped many clients grow their businesses, and choosing the right channel is key. For the BYD Leopard 8 mats, you have two strong options.
Online Channels (B2C)
- Amazon / eBay: These are volume drivers. The key here is good photography and clear compatibility charts (6 vs 7 seats).
- Shopify / Brand Site: Higher margins. You can tell the story of the "Custom Fit" and "TPE Material" better here.

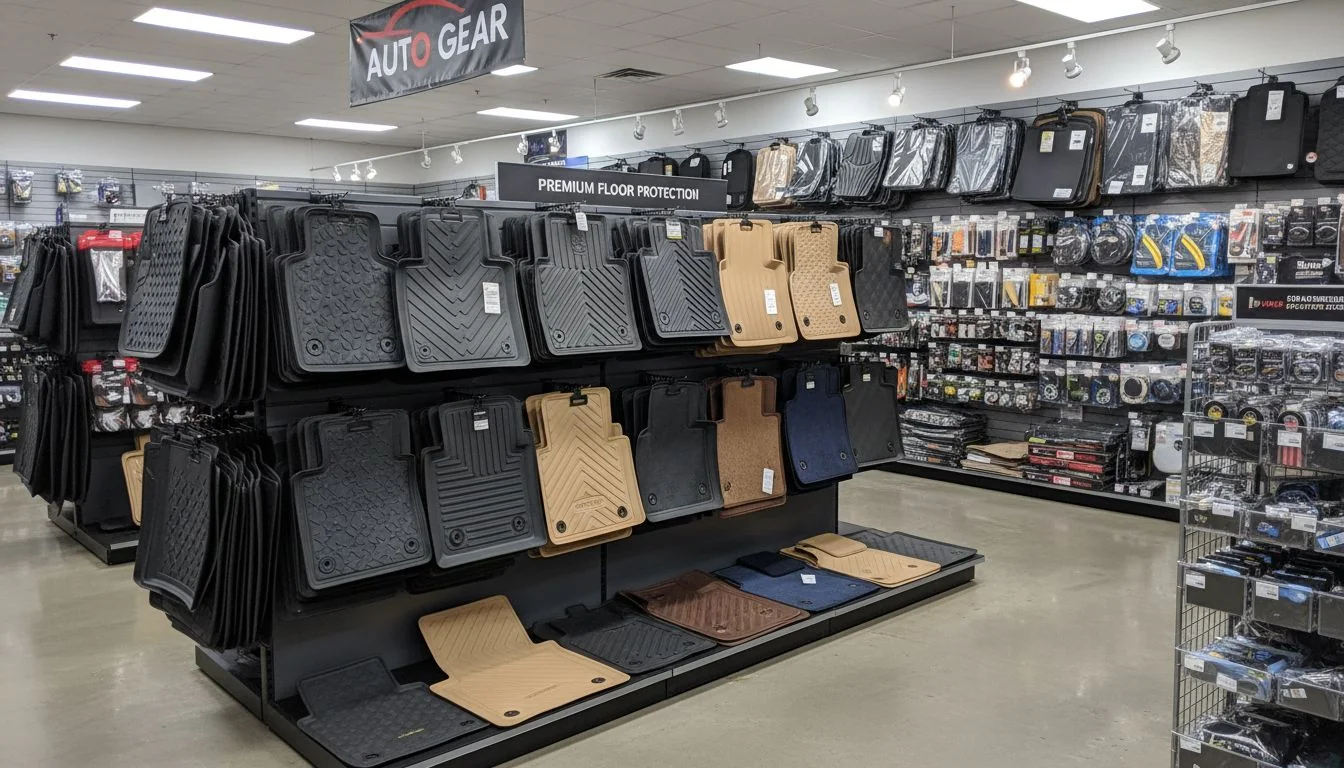

Offline Channels (B2B)
- Car Dealerships: BYD dealers often want to upsell accessories at the point of car purchase.
- Detailing Shops: Customers getting ceramic coating often buy new mats.
Logistics Consideration
Since these mats are large, shipping costs are a factor. Selling offline in bulk to dealers saves on shipping compared to sending single boxes to individual customers. We can help you plan the pallet loading to maximize container space.
Generate Claims
Selling to dealerships allows for bulk shipping savings.True
Shipping pallets is far cheaper per unit than shipping individual parcels.
Online marketplaces do not require compatibility charts.False
Clear compatibility info is crucial online to prevent high return rates due to wrong fitment.
Conclusion
The BYD Leopard 8 demands precision. By using our custom TPE molds, you get durability, safety, and brand control. Let's master molding right and build your product line today.
